S86BLZ直流无刷电机
S86BLZ BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S86BLS85-430 | S86BLS98-430 | S86BLS112-430 | S86BLS136-430 |
极数 Number of poles | 8 | 8 | 8 | 8 |
相数 Number of phases | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.7 | 1.05 | 1.4 | 2.1 |
额定电流 Rated current Amps | 6.3 | 9 | 11.5 | 18 |
输出功率 Output power W | 220 | 330 | 440 | 660 |
峰值扭矩 Peak torque N-M | 2.1 | 3.15 | 4.2 | 6.3 |
峰值电流 Peak current Amps | 19 | 27 | 35 | 54 |
力矩常数 Torque constant N-M/A | 0.13 | 0.13 | 0.127 | 0.127 |
反电势常数 Back EMF constant V/KRPM | 13.7 | 13.7 | 13.3 | 13.3 |
转动惯量 Rotor inertia Kg.mm² | 800 | 1200 | 1600 | 2400 |
机身长度 Body length mm(L) | 85 | 98 | 112 | 136 |
重量 Mass Kg | 1.9 | 2.3 | 2.7 | 4 |
传感器 sensor | 霍尔 Honeywell | |||
产品防护等级 Product Class of lP | IP30 | |||
存储环境温度 Storage ambient temperature | -25°C-+70°C | |||
产品表面温度 Product surface temperature | <=80°C | |||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | |||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | |||

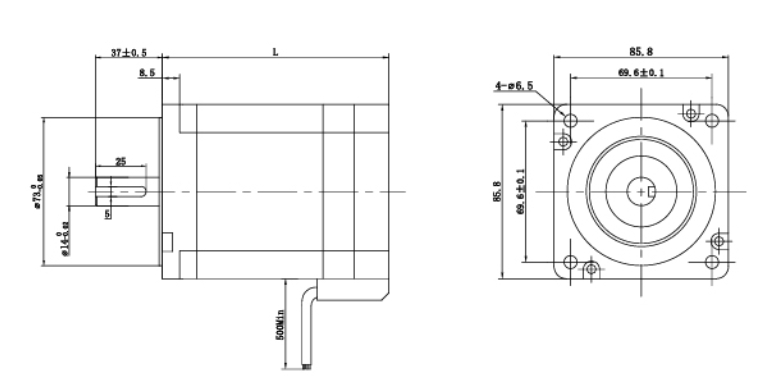

电机外形尺寸
Dimensions
单位
Unit=mm

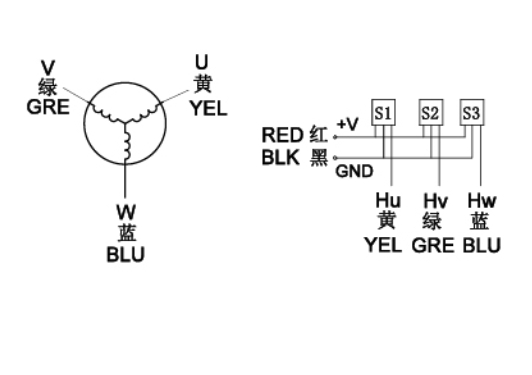

接线图
Wiring Diagram
