S36BLR直流无刷电机
S36BLR BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C - +50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500 VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700 VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S36BLR40-140 | S36BLR40-250 | S36BLR50-260 | S36BLR60-280 |
极数 Number of poles | 4 | 4 | 4 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 12 | 24 | 24 | 24 |
额定转速 Rated speed RPM | 4000 | 5000 | 6000 | 8000 |
额定扭矩 Rated torque m N.M | 12 | 12 | 20 | 30 |
输出功率 Output power W | 5 | 6.2 | 12 | 25 |
峰值扭矩 Peak torque m N.M | 36 | 36 | 63 | 90 |
峰值电流 Peak current Amps | 1.6 | 1.1 | 2.1 | 3.8 |
力矩常数 Torque constant N.M/A | 20.8 | 35.2 | 30.6 | 24.1 |
转动惯量 Rotor inertia g.cm² | 4.5 | 4.5 | 8.2 | 12 |
机身长度 Body length mm(L) | 40 | 40 | 50 | 60 |
重量 Mass Kg | 0.15 | 0.15 | 0.18 | 0.22 |
传感器 sensor | 霍尔 Honeywell | |||
产品防护等级 Product Class of lP | IP30 | |||
存储环境温度 Storage ambient temperature | -25°C-+70°C | |||
产品表面温度 Product surface temperature | <80°C | |||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | |||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust |

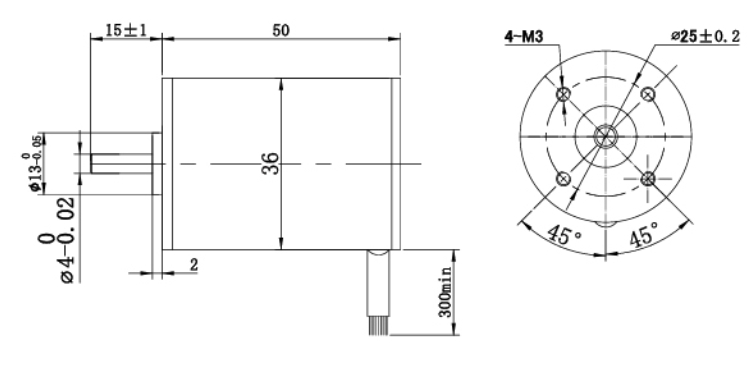

电机外形尺寸
Dimensions
单位
Unit=mm

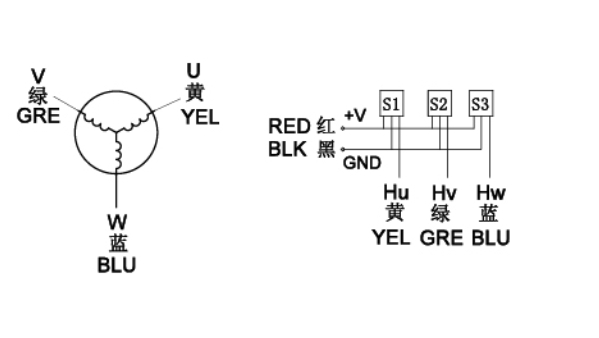

接线图
Wiring Diagram
