1.8°57mm直线电机
1.8°57MM(NEMA23)LINEAR MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
步距角 Step Angle | 1.8° |
温升 Temperature Rise | 80°Cmax |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1minute |
IP等级 Class of IP | 30 |
电机规格
Electrical Specifications
型号 Model No | 步距角 Step Angle | 机身 Model Length | 电流 Current phase | 电阻 Resistance phase | 电感 Inductance phase | 静扭矩 Holding Torque | 转子惯量 Rotor Inertia | 定位扭矩 Dentent Torque | 引出线 Number of Leads | 重量 Weight |
| (°) | mm | A | Ω | mH | g.cm | g.cm² | g.cm | NO. | g | |
| S57BYGL41-200A4 | 1.8 | 41 | 2.0 | 1.4 | 1.4 | 0.55 | 150 | 250 | 4 | 470 |
| S57BYGL56-300A4 | 1.8 | 56 | 3.0 | 1.1 | 2.5 | 1.1 | 280 | 350 | 4 | 680 |
| S57BYGL78-300A4 | 1.8 | 78 | 3.0 | 0.5 | 2.4 | 1.6 | 440 | 600 | 4 | 1050 |
| S57BYGL78-400A4 | 1.8 | 78 | 4.0 | 0.38 | 1.8 | 1.6 | 440 | 600 | 4 | 1050 |
| S57BYGL84-300A4 | 1.8 | 84 | 3.0 | 0.57 | 2.5 | 2.0 | 530 | 600 | 4 | 1130 |
| S57BYGL84-400A4 | 1.8 | 84 | 4.0 | 0.7 | 2.7 | 2.0 | 530 | 1000 | 4 | 1130 |
| S57BYGL100-300A4 | 1.8 | 100 | 3.0 | 0.89 | 3.4 | 2.4 | 680 | 1100 | 4 | 1250 |
| S57BYGL100-420A4 | 1.8 | 100 | 4.2 | 0.9 | 3.8 | 2.2 | 680 | 1100 | 4 | 1250 |
| S57BYGL112-300A4 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.2 | 800 | 1200 | 4 | 1400 |
| S57BYGL112-4200A4 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.5 | 800 | 1200 | 4 | 1400 |
注:L2长度可根据客户要求定制。
Note: L legth can be cutomized according to customer requirements.
丝杆参数/Screw parameter
直径 Diameter | 丝杆直径 Screw diameter | 导程 Lead | 导程 Lead | 步长 Step | 步长 Step | 螺母轴向间隙 Nut axial clearance |
| (mm) | (inch) | (mm) | (inch) | 1.8°(°) | 0.9°(°) | (mm) |
| 69.525 | 0.375 | 0.635 | 0.025 | 0.003175 | 0.0016 | 0.02-0.03 |
| 9.525 | 0.375 | 1.27 | 0.05 | 0.00635 | 0.0032 | 0.02-0.03 |
| 9.525 | 0.375 | 1.5875 | 0.0625 | 0.0079375 | 0.004 | 0.02-0.03 |
| 9.525 | 0.375 | 2.1167 | 0.083 | 0.0105835 | 0.0053 | 0.02-0.03 |
| 9.525 | 0.375 | 2.54 | 0.1 | 0.0127 | 0.0064 | 0.02-0.03 |
| 9.525 | 0.375 | 3.175 | 0.125 | 0.015875 | 0.0079 | 0.02-0.03 |
| 9.525 | 0.375 | 4.232 | 0.167 | 0.02116 | 0.0106 | 0.02-0.03 |
| 9.525 | 0.375 | 5.08 | 0.2 | 0.0254 | 0.0127 | 0.02-0.03 |
| 9.525 | 0.375 | 6.35 | 0.25 | 0.03175 | 0.0159 | 0.02-0.03 |
| 9.525 | 0.375 | 9.525 | 0.375 | 0.047625 | 0.0238 | 0.02-0.03 |
| 9.525 | 0.375 | 10.16 | 0.4 | 0.0508 | 0.0254 | 0.02-0.03 |
| 9.525 | 0.375 | 12.7 | 0.5 | 0.0635 | 0.0318 | 0.02-0.03 |
| 9.525 | 0.375 | 25.4 | 1 | 0.127 | 0.0635 | 0.02-0.03 |
注:直线电机所配螺母可根据客户要求提供,通用螺母为三角形螺母、圆形螺母、消隐螺母
Note: Nuts for linear motor can be provided according to customer requirements, general nuts for triangle nuts, round nuts,blanking nuts.

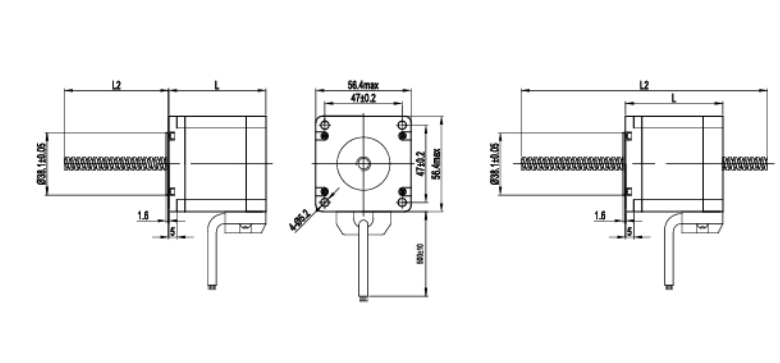

电机外形尺寸
Dimensions
单位
Unit=mm

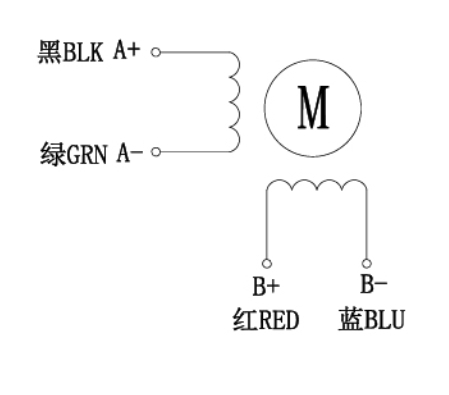

接线图
Wiring Diagram
