S86BL直流无刷偏心减速电机
S86BL BRUSHLESS GEAR MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S86BL70-430 | S86BL80-430 | S86BL90-430 | S86BL105-430 | S86BL115-430 |
极数 Number of poles | 8 | 8 | 8 | 8 | 8 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.65 | 1 | 1.3 | 1.8 | 2.1 |
额定电流 Rated current Amps | 6 | 8.5 | 11.1 | 14.8 | 17 |
输出功率 Output power W | 200 | 314 | 410 | 565 | 659 |
机身长度 Body length L2 mm | 70 | 80 | 90 | 105 | 115 |
传感器 sensor | 霍尔 Honeywell | ||||
产品防护等级 Product Class of lP | IP30 | ||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||||
产品表面温度 Product surface temperature | <=80°C | ||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | ||||
减速机规格
Gearbox Electrical specification
减速级数 Number of geartrains | 一级 | 二级 |
减速比 Reduction ratio | 3.5.7.10 | 25.30.36.50.60.75.90.100 |
传动效率 Transmission efficiency | 96% | 75% |
减速箱长度L1 Length(mm) | 109.5 | 65.5 |

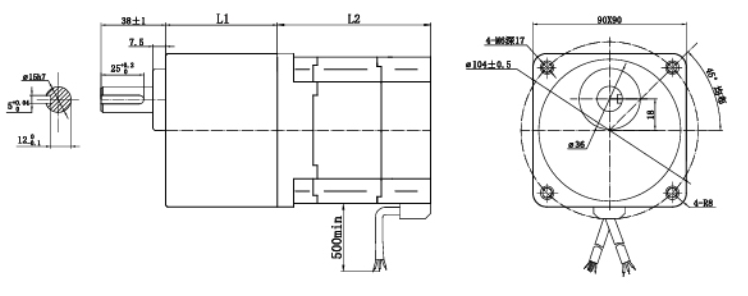

电机外形尺寸
Dimensions
单位
Unit=mm

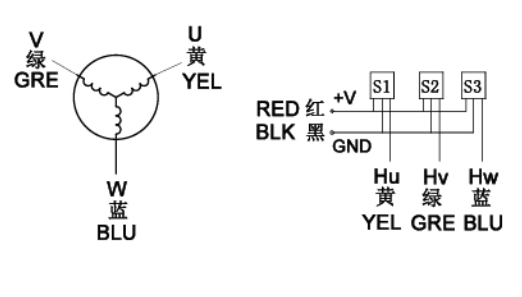

接线图
Wiring Diagram
