S57BL直流无刷电机
S57BL BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S57BL45-230 | S57BL55-230 | S57BL75-230 | S57BL95-230 | S57BL115-230 |
极数 Number of poles | 4 | 4 | 4 | 4 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 24 | 24 | 24 | 24 | 24 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.055 | 0.11 | 0.22 | 0.33 | 0.45 |
额定电流 Rated current Amps | 1.16 | 2.4 | 4.8 | 6.6 | 8.6 |
输出功率 Output power W | 17 | 35 | 70 | 105 | 140 |
峰值扭矩 Peak torque N-M | 0.165 | 0.33 | 0.66 | 0.99 | 1.35 |
峰值电流 Peak current Amps | 3.48 | 7.2 | 14.4 | 19.8 | 25.8 |
力矩常数 Torque constant N-M/A | 0.063 | 0.063 | 0.063 | 0.063 | 0.063 |
反电势常数 Back EMF constant V/KRPM | 6.3 | 6.6 | 6.6 | 6.6 | 6.6 |
转动惯量 Rotor inertia Kg.mm² | 32 | 75 | 119 | 173 | 230 |
机身长度 Body length mm(L) | 45 | 55 | 75 | 95 | 115 |
重量 Mass Kg | 0.33 | 0.44 | 0.75 | 1.0 | 1.25 |
传感器 sensor | 霍尔 Honeywell | ||||
产品防护等级 Product Class of lP | IP30 | ||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||||
产品表面温度 Product surface temperature | <80°C | ||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit，no dust | ||||

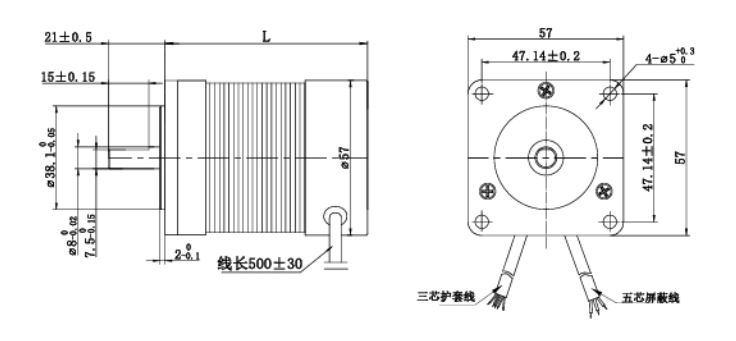

电机外形尺寸
Dimensions
单位
Unit=mm

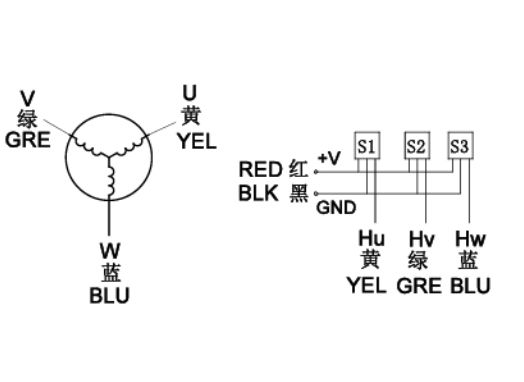

接线图
Wiring Diagram
