1.8°57mm两相混合式步进电机
1.8°57MM (NEMA23)2PHASE HYBRID STEPPER MOTOR
基本性能 /Genaral Specification:
项目 ltem | 性能 Specifications |
步距角 Step Angle | 1.8° |
温升 Temperature Rise | 85°Cmax |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 500VAC for 1 minute |
径向间隙 Shaft Radial Play | 0.02Max.(450g) |
轴向间隙 Shaft Axial Play | 0.08Max.(450g) |
最大径向压力 Max.radial force | 28N(20mm from the flange) |
最大轴向压力 Max.axial force | 14N |
电机规格
Electrical Specifications
型号 Model No | 步距角 Step Angle | 机身 Model Length | 电流 Current phase | 电阻 Resistance phase | 电感 Inductance phase | 静扭矩 Holding Torque | 转子惯量 Rotor Inertia | 定位扭矩 Dentent Torque | 引出线 Number of Leads | 重量 Weight |
| (°) | mm | A | Ω | mH | N.M | g.cm² | g.cm | NO. | g | |
| S57BYGH41-200A4 | 1.8 | 41 | 2.0 | 1.2 | 2.5 | 0.55 | 150 | 250 | 4 | 470 |
| S57BYGH56-300A4 | 1.8 | 56 | 3 | 1.1 | 3 | 1 | 280 | 350 | 4 | 680 |
| S57BYGH78-300A4 | 1.8 | 78 | 3.0 | 0.5 | 2.4 | 1.6 | 440 | 600 | 4 | 1050 |
| S57BYGH78-400A4 | 1.8 | 78 | 4.0 | 0.38 | 1.8 | 1.6 | 440 | 600 | 4 | 1050 |
| S57BYGH84-300A4 | 1.8 | 84 | 3.0 | 0.57 | 2.5 | 2.0 | 530 | 600 | 4 | 1130 |
| S57BYGH84-400A4 | 1.8 | 84 | 4.0 | 0.7 | 2.7 | 2.0 | 530 | 1000 | 4 | 1130 |
| S57BYGH100-300A4 | 1.8 | 100 | 3.0 | 0.89 | 3.4 | 2.4 | 680 | 1100 | 4 | 1250 |
| S57BYGH100-420A4 | 1.8 | 100 | 4.2 | 0.9 | 3.8 | 2.2 | 680 | 1100 | 4 | 1250 |
| S57BYGH112-300A4 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.2 | 800 | 1200 | 4 | 1400 |
| S57BYGH112-420A4 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.5 | 800 | 1200 | 4 | 1400 |

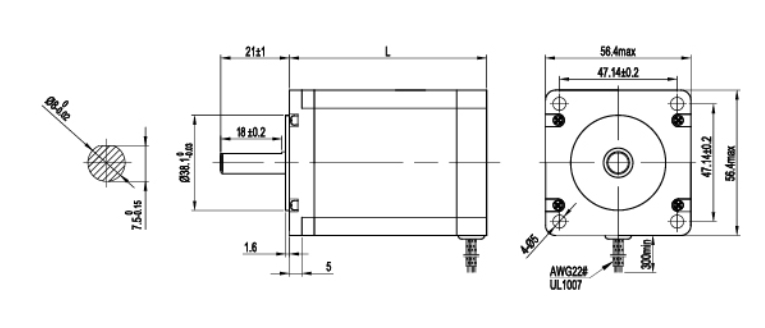

电机外形尺寸
Dimensions
单位
Unit=mm

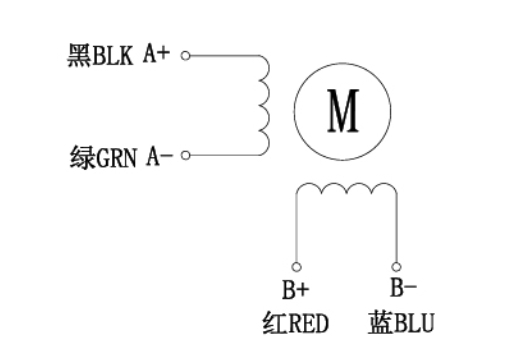

接线图
Wiring Diagram
