1.8°42mm两相混合式步进电机
1.8° 42MM (NEMA17)2PHASE HYBRID STEPPER MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
步距角 Step Angle | 1.8° |
温升 Temperature Rise | 85°Cmax |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 500VAC for 1 minute |
径向间隙 Shaft Radial Play | 0.02Max.(450g) |
轴向间隙 Shaft Axial Play | 0.06Max.(450g) |
最大径向压力 Max.radial force | 28N(20mm from the flange) |
最大轴向压力 Max.axial force | 10N |
电机规格
Electrical Specifications
型号 Model No | 步距角 Step Angle | 机身 Model Length | 电流 Current phase | 电阻 Resistance phase | 电感 Inductance phase | 静扭矩 Holding Torque | 转子惯量 Rotor Inertia | 定位扭矩 Dentent Torque | 引出线 Number of Leads | 重量 Weight |
| (°) | mm | A | Ω | mH | g.cm | g.cm² | g.cm | NO. | g | |
| S42BYGH34-130A4 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 25 | 34 | 120 | 4 | 220 |
| S42BYGH34-040A4 | 1.8 | 34 | 0.4 | 30 | 18 | 21 | 34 | 120 | 4 | 220 |
| S42BYGH40-170A4 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 54 | 150 | 4 | 280 |
| S42BYGH48-130A4 | 1.8 | 48 | 1.3 | 3.2 | 5.5 | 52 | 68 | 260 | 4 | 350 |
| S42BYGH48-170A4 | 1.8 | 48 | 1.7 | 1.8 | 3.2 | 52 | 68 | 260 | 4 | 350 |
| S42BYGH60-170A4 | 1.8 | 60 | 1.7 | 2.3 | 4.6 | 70 | 80 | 280 | 4 | 480 |
| S42BYGH60-230A4 | 1.8 | 60 | 2.3 | 1.4 | 2.5 | 70 | 80 | 280 | 4 | 480 |

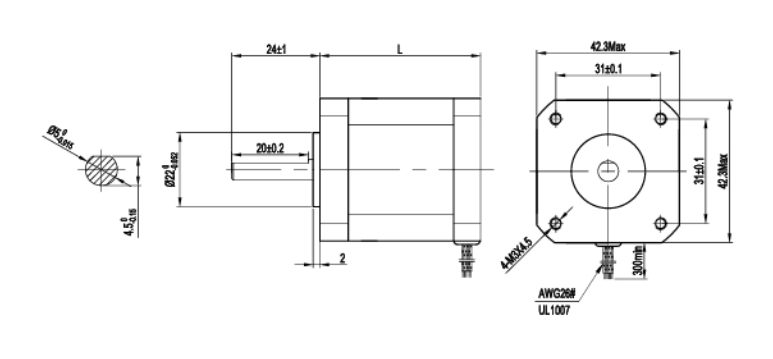

电机外形尺寸
Dimensions
单位
Unit=mm

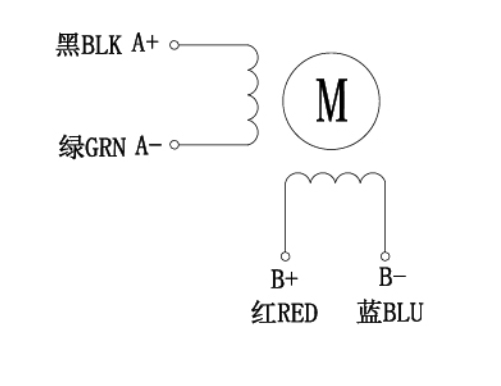

接线图
Wiring Diagram
