1.8°86mm两相混合式步进电机
1.8°86MM (NEMA34)2PHASE HYBRID STEPPER MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
步距角 Step Angle | 1.8° |
温升 Temperature Rise | 80°Cmax |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
径向间隙 Shaft Radial Play | 0.02Max.(450g) |
轴向间隙 Shaft Axial Play | 0.08Max.(450g) |
最大径向压力 Max.radial force | 220N(20mm from the flange) |
最大轴向压力 Max.axial force | 60N |
电机规格/Electrical Specifications:
型号 Model No | 步距角 Step Angle | 机身 Model Length | 电流 Current phase | 电阻 Resistance phase | 电感 Inductance phase | 静扭矩 Holding Torque | 转子惯量 Rotor Inertia | 定位扭矩 Dentent Torque | 引出线 Number of Leads | 重量 Weight |
| (°) | mm | A | Ω | mH | N.M | g.cm² | g.cm | NO. | g | |
| S86BYGH68-400A4 | 1.8 | 68 | 4.0 | 0.63 | 3.2 | 2.6 | 0.85 | 0.8 | 4 | 2.0 |
| S86BYGH80-600A4 | 1.8 | 80 | 6.0 | 0.38 | 3.5 | 4.5 | 1.05 | 1.2 | 4 | 2.5 |
| S86BYGH98-500A4 | 1.8 | 98 | 5.0 | 0.5 | 4.0 | 6.8 | 1.55 | 1.9 | 4 | 3.0 |
| S86BYGH118-600A4 | 1.8 | 118 | 6.0 | 0.6 | 6.8 | 8.5 | 1.8 | 2.4 | 4 | 3.5 |
| S86BYGH128-500A4 | 1.8 | 128 | 5.0 | 0.6 | 5.0 | 9.0 | 2.2 | 2.9 | 4 | 3.9 |
| S86BYGH150-600A4 | 1.8 | 150 | 6.0 | 0.75 | 8.5 | 11 | 2.5 | 3.6 | 4 | 4.2 |

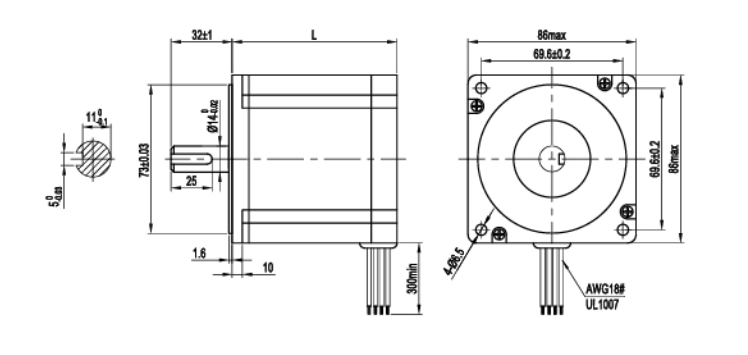

电机外形尺寸
Dimensions
单位
Unit=mm

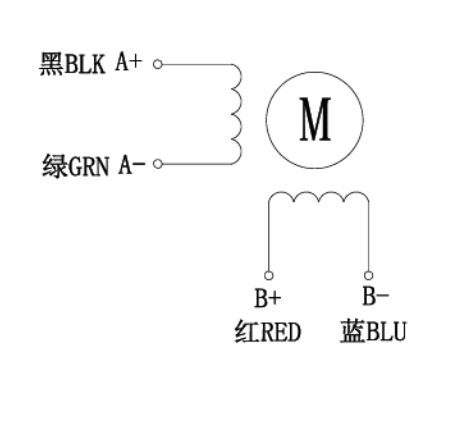

接线图
Wiring Diagram
