1.8°42mm直线电机
1.8°42MM (NEMA17)LINEAR MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
步距角 Step Angle | 1.8° |
温升 Temperature Rise | 80°Cmax |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of IP | 30 |
电机规格
Electrical Specifications
型号 Model No | 步距角 Step Angle | 机身 Model Length | 电流 Current phase | 电阻 Resistance phase | 电感 Inductance phase | 静扭矩 Holding Torque | 转子惯量 Rotor Inertia | 定位扭矩 Dentent Torque | 引出线 Number of Leads | 重量 Weight |
| (°) | mm | A | Ω | mH | g.cm | g.cm² | g.cm | NO. | g | |
| S42BYGL34-130A4 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 25 | 34 | 120 | 4 | 220 |
| S42BYGL34-040A4 | 1.8 | 34 | 0.4 | 3.0 | 1.8 | 21 | 34 | 120 | 4 | 220 |
| S42BYGL40-170A4 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 54 | 150 | 4 | 280 |
| S42BYGL48-130A4 | 1.8 | 48 | 1.3 | 3.2 | 5.5 | 52 | 68 | 260 | 4 | 350 |
| S42BYGL48-170A4 | 1.8 | 48 | 1.7 | 1.8 | 3.2 | 52 | 68 | 260 | 4 | 350 |
| S42BYGL60-170A4 | 1.8 | 60 | 1.7 | 2.3 | 4.6 | 70 | 80 | 280 | 4 | 490 |
| S42BYGL60-230A4 | 1.8 | 60 | 2.3 | 1.4 | 2.5 | 70 | 80 | 280 | 4 | 490 |
注:L2长度可根据客户要求定制。
Note: L legth can be cutomized according to customer requirements.
丝杆参数
Screw parameter
直径 Diameter | 丝杆直径 Screw diameter | 导程 Lead | 导程 Lead | 步长 Step | 步长 Step | 螺母轴向间隙 Nut axial clearance |
| (mm) | (inch) | (mm) | (inch) | 1.8°(°) | 0.9°(°) | (mm) |
| 6.35 | 0.25 | 0.79375 | 0.0313 | 0.004 | 0.002 | 0.02-0.03 |
| 6.35 | 0.25 | 1 | 0.0394 | 0.005 | 0.0025 | 0.02-0.03 |
| 6.35 | 0.25 | 1.5875 | 0.0625 | 0.0079 | 0.004 | 0.02-0.03 |
| 6.35 | 0.25 | 2 | 0.0787 | 0.01 | 0.005 | 0.02-0.03 |
| 6.35 | 0.25 | 2.4384 | 0.096 | 0.0122 | 0.0061 | 0.02-0.03 |
| 6.35 | 0.25 | 2.54 | 0.1 | 0.0127 | 0.0064 | 0.02-0.03 |
| 6.35 | 0.25 | 3 | 0.1181 | 0.015 | 0.0075 | 0.02-0.03 |
| 6.35 | 0.25 | 3.175 | 0.125 | 0.0159 | 0.0079 | 0.02-0.03 |
| 6.35 | 0.25 | 4.8768 | 0.192 | 0.024384 | 0.012192 | 0.02-0.03 |
| 6.35 | 0.25 | 5.08 | 0.2 | 0.0254 | 0.0127 | 0.02-0.03 |
| 6.35 | 0.25 | 6.35 | 0.25 | 0.0318 | 0.0159 | 0.02-0.03 |
| 6.35 | 0.25 | 8.4582 | 0.333 | 0.0423 | 0.0211 | 0.02-0.03 |
| 6.35 | 0.25 | 12.7 | 0.5 | 0.0635 | 0.0318 | 0.02-0.03 |
注:直线电机所配螺母可根据客户要求提供,通用螺母为三角形螺母、圆形螺母、消隐螺母
Note: Nuts for linear motor can be provided according to customer requirements, general nuts for triangle nuts, round nuts,blanking nuts.

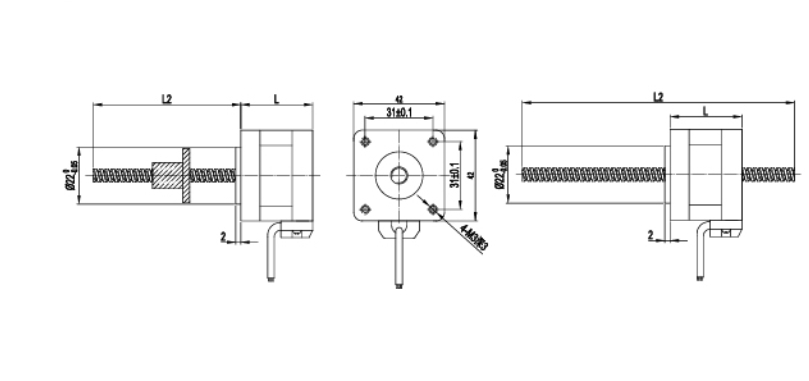

电机外形尺寸
Dimensions
单位
Unit=mm

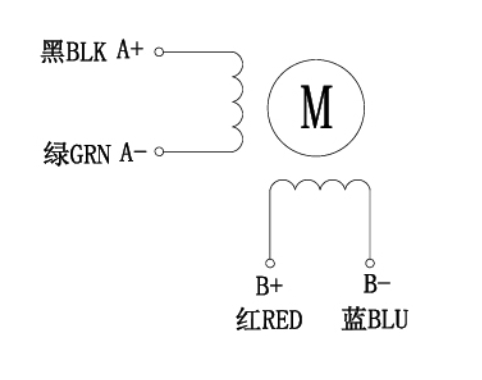

接线图
Wiring Diagram
